Mamiya RB67 6 x 4.5cm • 6 x 7cm Orta Format SLR Filmli Fotoğraf Makinesi
Ödül Puanı: 0
Stok Durumu: Stokda var
| Film Format |
6 x 4.5 cm • 6 x 7 cm
|
| Camera Type |
SLR (Single Lens Reflex)
|
| Film Type |
Medium Format
|
| Zoom Lens |
Without Zoom Lens
|
| Zoom Range |
127 mm
|
| Focus Type |
Manual Focus
|
| Focus Lock |
With Focus Lock
|
| Interchangeable Lenses |
Interchangeable Lenses
|
| Shutter Speed |
1 - 1/400 sec
|
| Min Aperture |
f32
|
| Max Aperture |
f3.5
|
| Bulb Shutter Speed |
With Bulb Shutter Speed
|
| Self Timer |
Yes
|
| Waterproof |
No
|
| Interchangeable Film Back |
With Interchangeable Film Back
|
| Viewfinder Frame Coverage |
95 %
|
| Depth |
9.2 in.
|
| Height |
5.7 in.
|
| Width |
4.1 in.
|
| Weight |
94.89 oz.
|
| MPN |
301010
|
| Warranty |
1 Year parts and labor
|
| Product ID |
20296351
|
Posted 4-13-'07
The next page contains information on this camera. If the image below looks like your camera, click below to see the full manual.
This camera manual library is for reference and historical purposes, all rights reserved.
This page is copyright© by
, M. Butkus, NJ.
This page may not be sold or distributed without the expressed permission of the producer
I have no connection with any camera company
On-line camera manual library
If you find this manual useful, how about a donation of $3 to: M. Butkus, 29 Lake Ave., High Bridge, NJ 08829-1701
and send your e-mail address so I can thank you. Most other places would charge you $7.50 for a electronic copy
or $18.00 for a hard to read Xerox copy.
If you use Pay Pal, use the link below. Use the above address for a check, M.O. or cash.
Click here to go to main Camera Manual site
RIGHT CLICK ON LINK BELOW, CHOOSE "SAVE TARGET AS"
SAVE TO FOLDER OF YOUR CHOICE (Acrobat 7.0 or Foxit PDF needed to read it)
Problems opening PDF files or printing problems - click here
CLICK HERE TO CONTINUE TO
FIRST PART OF PDF MANUAL
CLICK HERE TO CONTINUE TO
SECOND PART OF PDF MANUAL

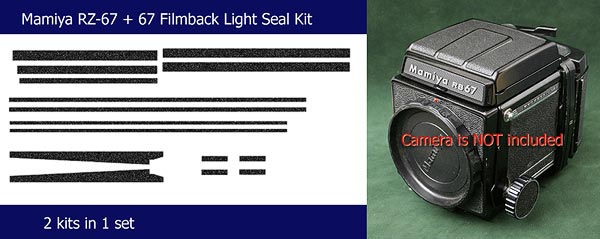

Mamiya RB-67 camera body + 120 Filmback's Light Seals replace kit

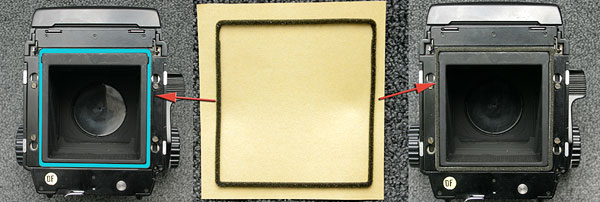

This is Mamiya RB-67 camera body and 6x7 film back's Light Seals foam (gasket sponge) replace kit.
(This item is "custom kit", NOT Mamiya brand-name parts.)
When the original light seals become old, it occurs light leaks and backdoor rattling.
It is time to replace the new Light seals, you do not have to worry about those problems any more.

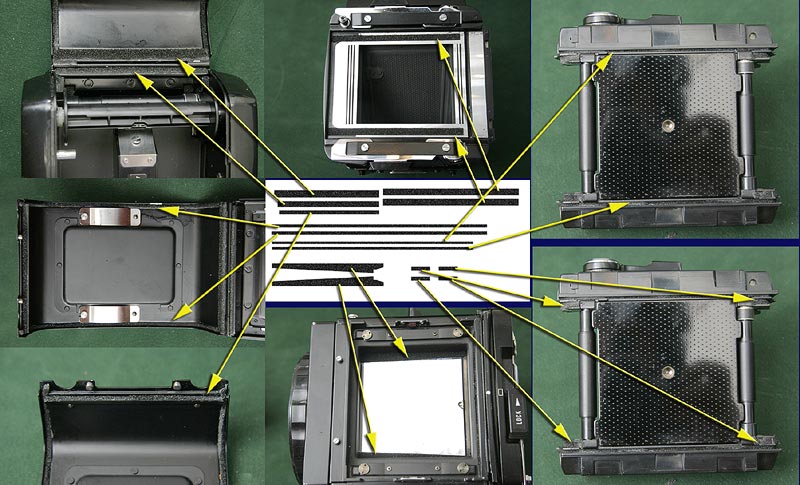

This seal kit covers Mamiya RB-67 camera body and 6x7 film backr's Light seals as below.
RB-67 camera body, 6x7 Film Holder are NOT included in this item.
Those are already cut, Ready to Use, You do not need to cut by yourself,
How many hours you should spend for measuring foam seal size and cut them if you do it by yourself?
Actually I spent 2 hours for measuring to make datas of cutting molds.
You can save time, this is no hassle and these are accurate size for Mamiya RB-67 camera body and 6x7 film back
Install this kit is not very difficult,
2 foam kits are included, you do not have to worry if you waste one.
If you are not so confident, you can use 1 kits for practice, you can install perfectly for the second time.

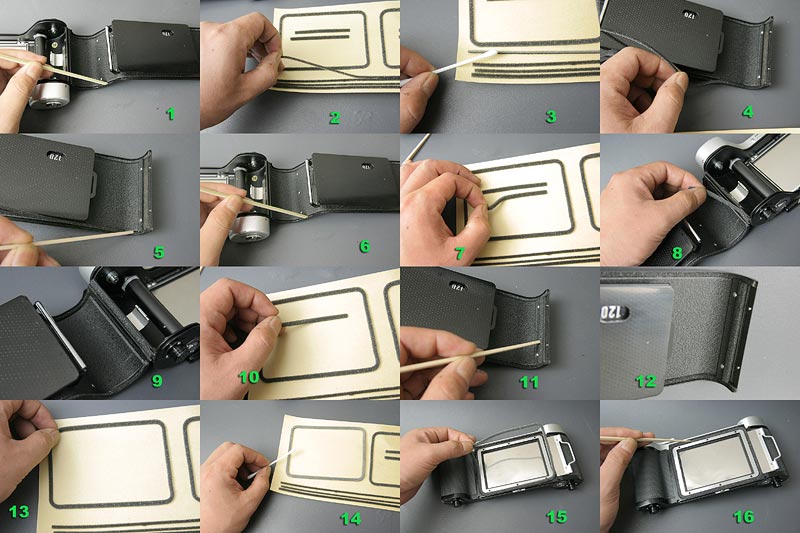

1. Remove the old light seals and clean up the residue with alcohol or benzine.
2. Take out the new light seal from the base paper.
3. Use cotton swab or paint brush and rub alcohol or water on the adhesive (sticky) side.
The alcohol or water delays the adhesion and allows you time to position and adjust the seals.
4. place the seals onto the ditch.
5,6. Use flathead screwdriver and adjust the seals before the alcohol get dry.

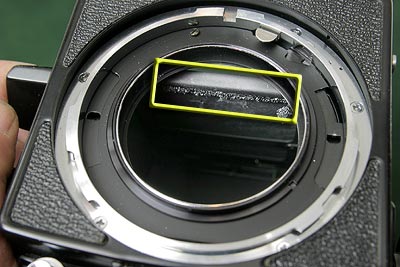

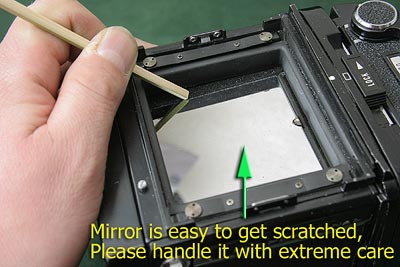

Since the mirror is easy to get scratched,
please handle it with extreme care when you replace mirror cushion sponge.
I do not recommend you to replace this cushion unless you are an expert.
The flocked paper is covered this part and extremely easy to get torn. This cusion sponge is not included.
This kit fits to Mamiya RB-67 camera body and 6x7 film back, does NOT fit to the other camera or filmback
